Automate Your Lighting. Enhance Your Security.

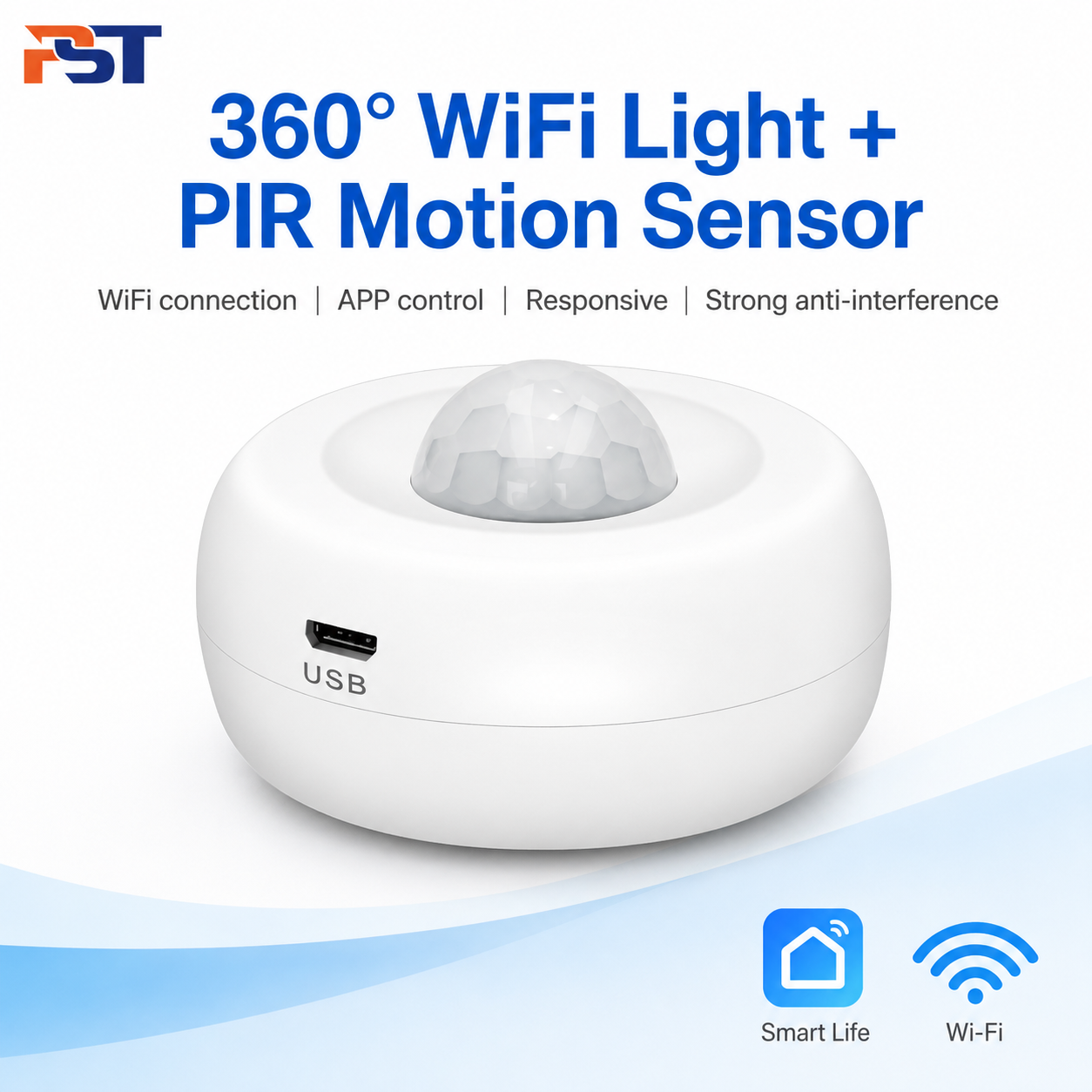

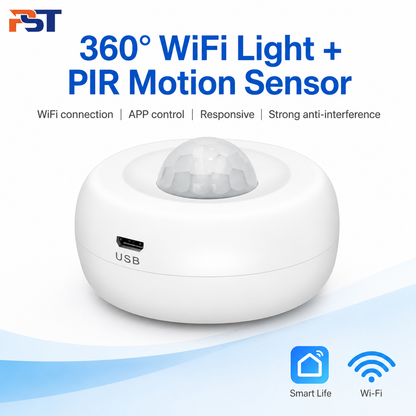

The Wi-Fi Ceiling Motion & Light Sensor is an intelligent 2-in-1 sensor that combines 360° PIR motion detection with ambient-light monitoring. Compatible Smart Life devices respond automatically to both movement and surrounding brightness — no gateway or hub required.
Connect directly to your 2.4 GHz Wi-Fi network and use it to switch lights on when movement is detected, turn them off when a room is unoccupied, activate security scenes, or receive real-time motion alerts on your smartphone.
Its compact ceiling-mounted design delivers wide detection coverage, making it ideal for homes, apartments, villas, offices, hotels, corridors, staircases, bathrooms, entrances and storage areas.
Key Features
- 2-in-1 PIR motion and ambient-light sensor
- 360° motion-detection coverage
- Motion-detection range of up to 6 metres
- Detects ambient-light levels from 0–1000 lux
- Direct 2.4 GHz Wi-Fi connection — no Zigbee gateway or hub required
- Compatible with Smart Life and Tuya Smart apps
- Real-time motion alerts via mobile app
- Low-battery notification
- Supports Smart Life automation and scene linkage
- Ceiling or wall installation
- Battery or USB-powered operation
Smart Automation Examples
- Turn on corridor lights when movement is detected
- Switch on lights only when the room is dark
- Turn lights off after no movement is detected
- Activate a night-light scene in bathrooms or staircases
- Send a smartphone alert when motion is detected
- Trigger a compatible Smart Life siren or security scene
- Activate compatible cameras, switches or smart lighting
- Monitor entrances, offices, storage rooms and passageways
Technical Specifications
| Specification |
Details |
| Product Type |
Wi-Fi Ceiling PIR Motion and Light Sensor |
| Manufacturer Model |
PST-FH400B |
| Application |
Smart Life / Tuya Smart |
| Wireless Connection |
2.4 GHz Wi-Fi |
| Wi-Fi Standard |
IEEE 802.11 b/g/n |
| PIR Detection Angle |
360° |
| PIR Detection Distance |
Up to 6 metres |
| Ambient-Light Detection |
0–1000 lux |
| Power Supply |
2 × AAA/LR03 batteries |
| USB Power Input |
DC 5V/2A |
| Low-Battery Notification |
Supported |
| Material |
ABS |
| Colour |
White |
| Operating Temperature |
–10°C to +50°C |
| Operating Humidity |
5%–95% RH, non-condensing |
| Installation |
Ceiling or wall mounting |
| Product Weight |
Approximately 80 g |
| Box Dimensions |
11.5 × 6 × 4.2 cm |
Power Options
The sensor operates on two AAA/LR03 batteries or a compatible 5V USB power supply. Use only one power method at a time. Battery life depends on Wi-Fi signal strength, daily motion events, notification settings and automation activity.
What's in the Box
- 1 × Smart Life Wi-Fi Ceiling PIR Sensor
- 2 × AAA/LR03 Batteries
- 1 × Double-Sided Mounting Tape
- 2 × Installation Screws
- 1 × User Manual
Installation Notes
Install on the ceiling for the widest 360° detection coverage. Avoid placing near air conditioners, heaters, moving curtains, strong sunlight or other rapidly changing heat sources, as these may cause false motion detection. A stable 2.4 GHz Wi-Fi connection is required — the device does not support 5 GHz-only networks.
Important Information
- Detects movement and surrounding light levels only — does not include a built-in room light or siren.
- Compatible Smart Life lights, switches, alarms and other devices are sold separately.
- Automation availability depends on the Smart Life app and connected device functions.
- Indoor installation recommended unless the location is fully protected from water and moisture.
