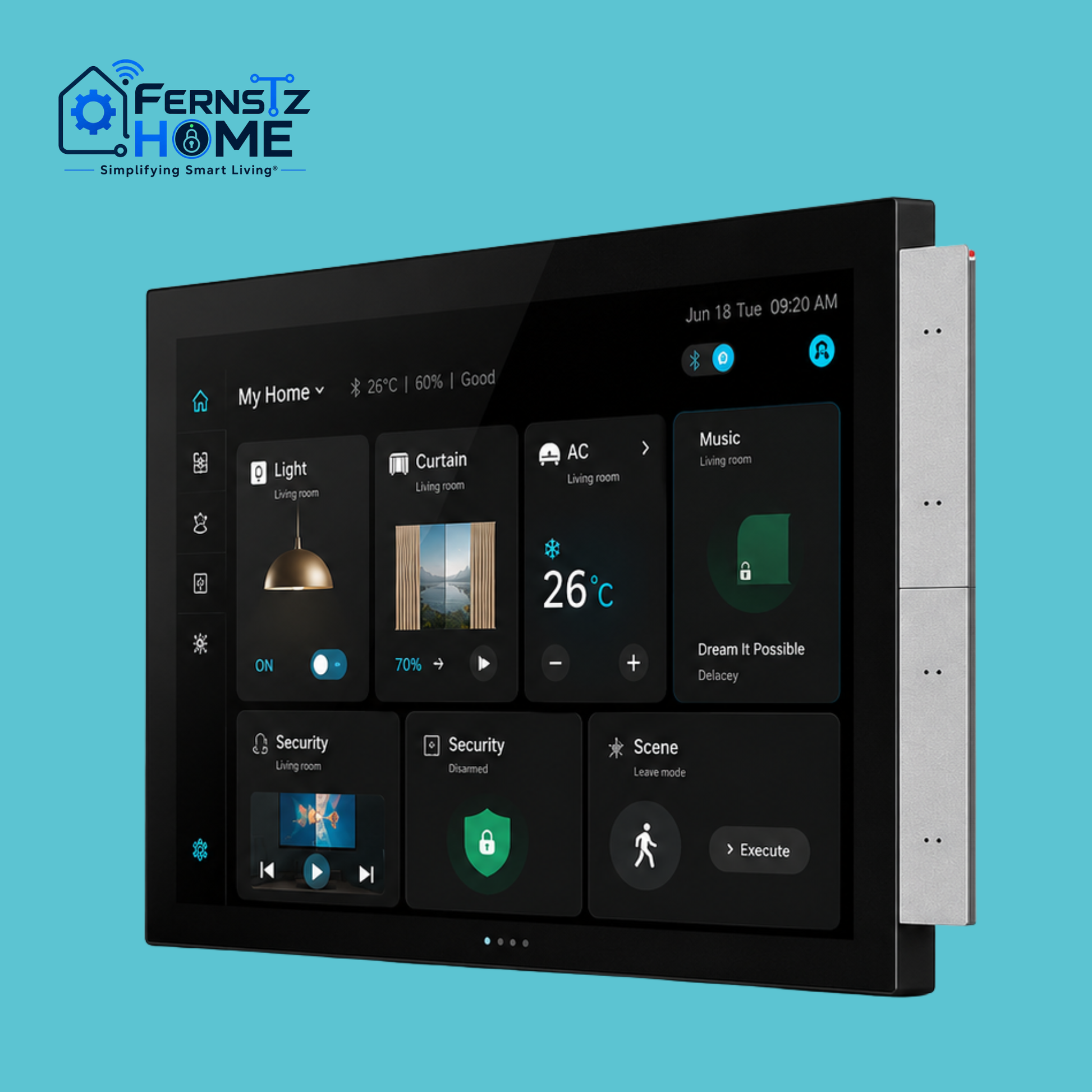

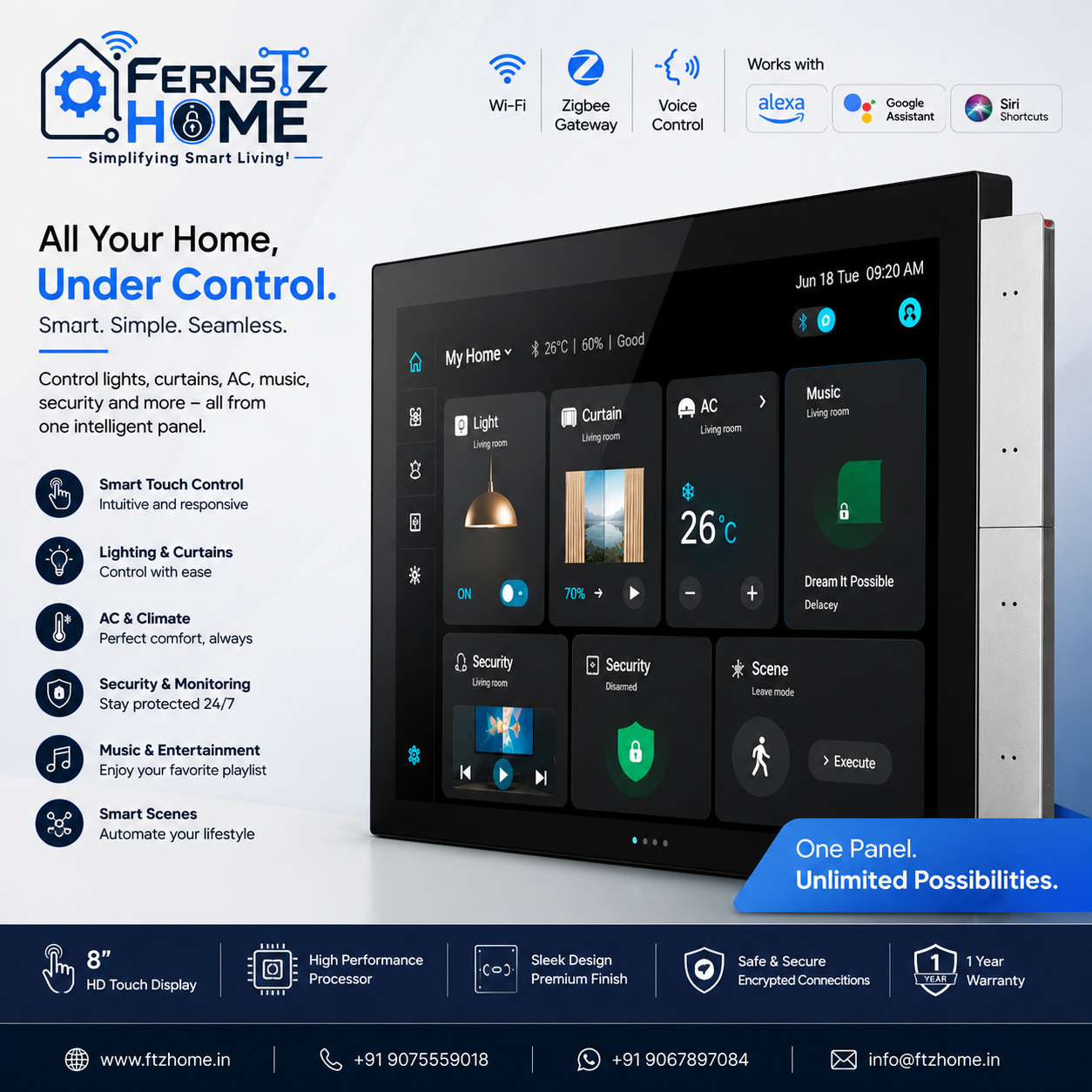

FTZ 10.1-Inch Smart Home Control Panel with Zigbee

Premium Whole-Home Smart Control

Experience centralized smart home management with the SMATEK S9E Smart Control Panel. Featuring a stunning 10.1-inch Full HD touchscreen, Android 11 operating system, built-in Zigbee 3.0 gateway, and advanced environmental sensors, the S9E serves as the ultimate command center for your connected home.

Designed for luxury residences, villas, hotels, offices, and smart building projects, the S9E provides seamless control of lighting, curtains, HVAC systems, security devices, sensors, and automation scenes from a single elegant wall-mounted interface.

Key Features

• ✅ 10.1" Full HD Multi-Touch Display
• ✅ Built-In Zigbee 3.0 Gateway
• ✅ Smart Life & Tuya Compatible
• ✅ Android 11 Operating System
• ✅ Wi-Fi + Bluetooth + Zigbee Connectivity
• ✅ Alexa Voice Control Support
• ✅ Temperature & Humidity Monitoring
• ✅ Millimeter-Wave Presence Sensor
• ✅ Quad Microphone Array
• ✅ Dual 2W Speakers
• ✅ One-Touch Scene Control
• ✅ Supports 100+ Zigbee Devices

Control Your Entire Smart Home

Manage all compatible Smart Life devices from one central dashboard:

• 💡 Smart Lights & Dimmers
• 🔌 Smart Plugs & Sockets
• 🪟 Curtains & Motorized Blinds
• ❄️ Air Conditioning Systems
• 🔐 Smart Locks
• 🚪 Door & Window Sensors
• 🚶 Motion Sensors
• 🔥 Smoke Detectors
• 💧 Water Leak Sensors
• 📷 Security Cameras
• 🔔 Video Doorbells
• 🌡️ Thermostats
• 💨 Air Purifiers & Ventilation Systems
• 🏠 Smart Scenes & Automations

The built-in Zigbee gateway eliminates the need for a separate hub while supporting over 100 Zigbee devices.

Smart Scene Automation

Create personalized scenes for every lifestyle:

• 🌅 Good Morning
• 🎬 Movie Mode
• 🌙 Good Night
• 🏠 Home Mode
• 🚪 Away Mode
• 🎉 Party Mode

Activate multiple devices instantly with a single touch.

Advanced Environmental Intelligence

The S9E includes integrated smart sensors for enhanced automation:

• Temperature Sensor
• Humidity Sensor
• Light Sensor
• Millimeter-Wave Presence Sensor
• Proximity Detection

These sensors enable intelligent automations based on occupancy and environmental conditions.

Smart Life & Tuya Compatible

The S9E is fully compatible with the Smart Life and Tuya ecosystem, allowing centralized control of compatible devices from multiple brands using a single interface.

Installation & Mounting

• ✅ Flush Wall Mounted Design
• ✅ Fits Large Asian Standard Wall Boxes
• ✅ Professional In-Wall Installation
• ✅ Powered by AC 100–240V
• ✅ Clean Premium Smart Home Dashboard Appearance

Technical Specifications

Display	10.1" Full HD IPS Touchscreen
Resolution	1920 × 1200
Processor	RK3566 Quad-Core Cortex-A55
Operating System	Android 11
Memory	2GB RAM
Storage	16GB ROM
Connectivity	Wi-Fi, Bluetooth, Zigbee 3.0
Built-In Zigbee Gateway	Yes
Voice Control	Alexa Compatible
Audio	Quad Microphones + Dual 2W Speakers
Sensors	Temperature, Humidity, Light & Presence
Power Supply	AC 100–240V
Installation	Flush Wall Mount
Panel Dimensions	272 × 155 × 38 mm
App Support	Smart Life / Tuya Smart

Why Choose the FTZ S9E?

The S9E combines a smart home dashboard, Zigbee hub, environmental monitoring system, voice interaction platform, and automation controller into one premium device.

Perfect for luxury smart homes, villas, hotels, offices, and advanced home automation projects seeking centralized control and a professional smart home experience.

Package Includes

• 1 × SMATEK S9E Smart Control Panel
• Wall Mounting Accessories
• User Manual

Warranty: Manufacturer Warranty Applicable.
