Professional Smart PoE Network Switch for CCTV, Security & Enterprise Networks

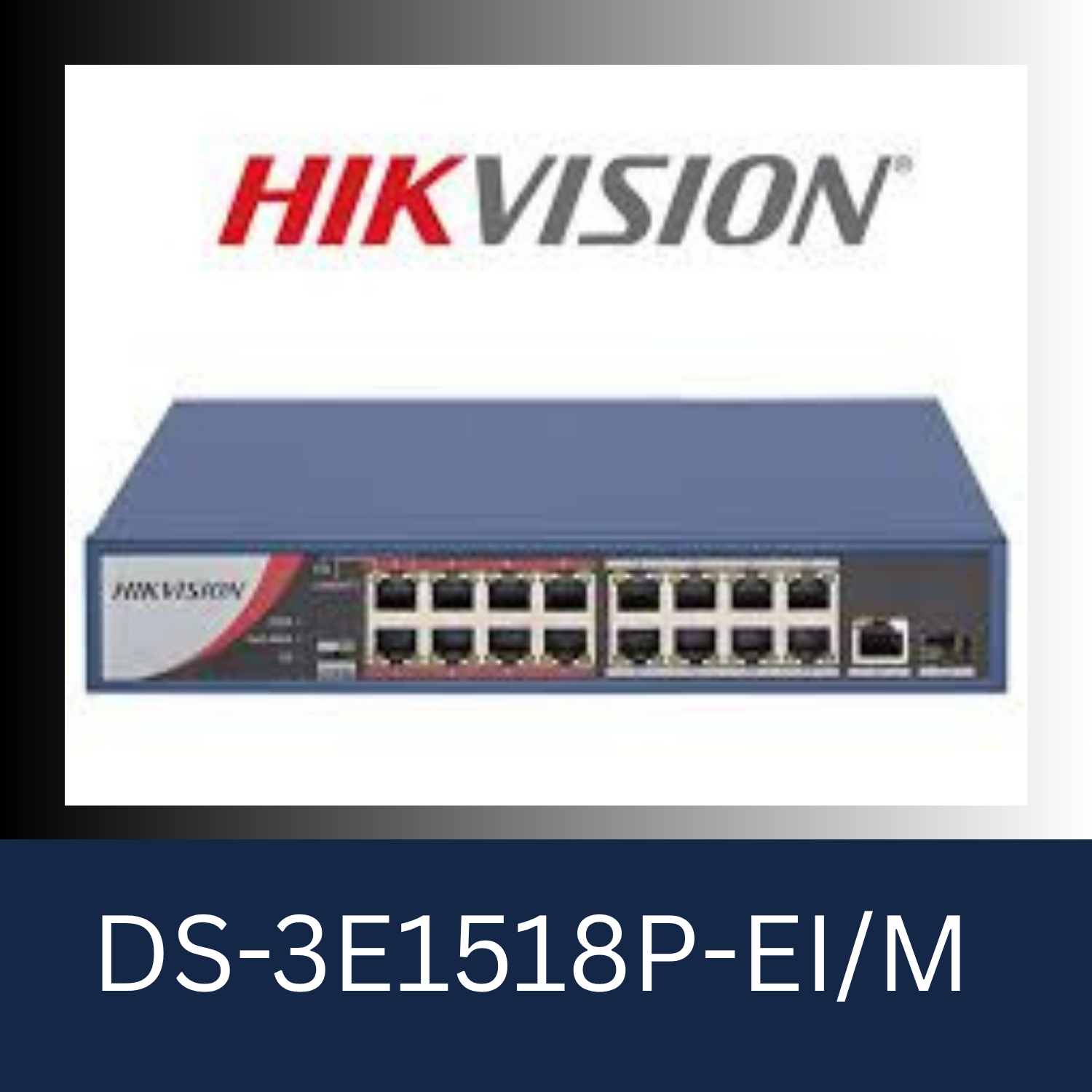

Build a powerful, scalable, and reliable network with the Hikvision DS-3E1518P-EI/M 16-Port Gigabit Smart Managed PoE Switch. Designed for professional surveillance systems, commercial buildings, offices, hotels, smart homes, and enterprise networks, this switch delivers intelligent network management, high-speed Gigabit connectivity, and dependable PoE power distribution.
Featuring 16 Gigabit PoE ports, 1 Gigabit RJ45 uplink port, and 1 Gigabit SFP fiber port, this smart managed switch supports advanced networking functions such as VLAN, Link Aggregation, PoE Watchdog, network topology visualization, and remote management.
Key Features
✅ 16 × Gigabit PoE Ports (10/100/1000 Mbps)
✅ 1 × Gigabit RJ45 Uplink Port
✅ 1 × Gigabit SFP Fiber Port
✅ IEEE 802.3af / 802.3at PoE Support
✅ Total PoE Budget: 130W
✅ Up to 30W Per PoE Port
✅ 56Gbps Switching Capacity
✅ 41.66 Mpps Packet Forwarding Rate
✅ Smart Managed Switch Functionality
✅ VLAN (802.1Q) Support
✅ Link Aggregation Support
✅ PoE Watchdog for Automatic Camera Recovery
✅ Up to 300m Long-Range PoE Transmission Mode
✅ Network Topology Visualization
✅ 6kV Surge Protection
✅ Metal Industrial-Grade Housing
✅ Web-Based Management Interface
Ideal Applications
IP CCTV Camera Systems & NVR Surveillance Networks
Hotels & Resorts
Offices & Commercial Buildings
Educational Institutions & Warehouses
Smart Homes & Villas
Industrial Monitoring Systems
Wi-Fi Access Point Deployments
Advanced Management Features
VLAN Network Segmentation & Port Isolation
Port Mirroring & Link Aggregation
DHCP Client Support & LLDP Discovery
Bandwidth Management & Network Health Monitoring
Remote Firmware Upgrades
PoE Device Monitoring
Automatic Camera Restart via PoE Watchdog
Benefits
Centralized power and data management
Reduce installation costs with PoE technology
Improve network security through VLAN segmentation
Automatically recover offline IP cameras
Extend camera installations up to 300 meters
Monitor and manage your network efficiently
Reliable operation for 24/7 surveillance systems
Enterprise-grade performance with simple deployment
Technical Specifications
Specification
Details
PoE Ports
16 × Gigabit RJ45
Uplink Ports
1 × Gigabit RJ45
Fiber Ports
1 × Gigabit SFP
PoE Standard
IEEE 802.3af / 802.3at
Max PoE Power Per Port
30W
Total PoE Budget
130W
Switching Capacity
56Gbps
Packet Forwarding Rate
41.66 Mpps
MAC Address Table
8K
Surge Protection
6kV
Long Range Mode
Up to 300m
Housing
Metal
Power Supply
100–240V AC
Dimensions
440 × 220.8 × 44 mm
Weight
2.7 kg
Specifications sourced from Hikvision product documentation.
