FTZ S6E – 4" Smart Home Control Panel - Zigbee
FTZ S6E – 4" Smart Home Control Panel - Zigbee

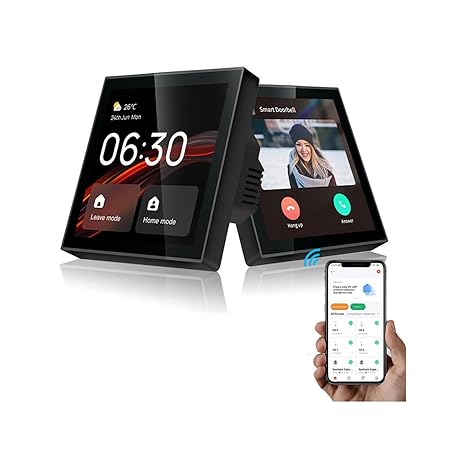

Transform your home into a smarter, more connected living space with the FTZ S6E Smart Control Panel. Designed for modern smart homes, villas, apartments, hotels, and offices, the S6E combines a sleek 4-inch touchscreen, built-in Zigbee gateway, and integrated relay control into a single wall-mounted smart home dashboard. Powered by the Tuya Smart Life ecosystem, it allows you to control and automate lighting, switches, curtains, sensors, locks, air conditioning, and more from one central interface.
Key Features
- 4" HD IPS Multi-Touch Display (480 × 480)
- Built-in Zigbee 3.0 Gateway
- Supports Wi-Fi, Bluetooth & Zigbee Connectivity
- Integrated 2-Gang Relay Switch Control
- Smart Scene & Automation Control
- Tuya Smart & Smart Life Compatible
- Control 100+ Zigbee Devices
- Built-in Microphone & Speaker
- Auto Brightness Light Sensor
- Wall Mount Installation (86×86 Standard Box)
- Voice Assistant Compatible via Tuya Ecosystem
- Ideal for Homes, Villas, Hotels & Smart Apartments
Compatible Devices
- Smart Touch Switches
- Smart Dimmers
- Smart Plugs & Sockets
- Curtain Motors
- Air Conditioners
- Smart Door Locks
- Motion Sensors (PIR)
- Door & Window Sensors
- Smoke & Heat Detectors
- Water Leak Sensors
- Temperature & Humidity Sensors
- Smart Cameras & Video Doorbells
- Water Heater Controllers
- Smart Lighting Systems
Technical Specifications
| Specification | Details |
|---|---|
| Processor | PX30 Quad-Core Cortex-A35 |
| Operating System | Android 8.1 |
| Memory | 2GB RAM |
| Storage | 8GB ROM |
| Display | 4" IPS Touch Screen |
| Resolution | 480 × 480 |
| Connectivity | Wi-Fi, Bluetooth, Zigbee 3.0 |
| Ethernet | RJ45 10/100Mbps |
| Relay Output | Built-in 2-Gang Relay |
| Audio | Dual Microphones + 1W Speaker |
| Power Supply | AC 100–240V, 50/60Hz |
| Installation | Flush Wall Mount |
| Working Temperature | 0°C to 40°C |
What's in the Box
- 1 × FTZ S6E Smart Control Panel
- 1 × Wall Mount Base
- Installation Screws
- User Manual
Applications
Perfect for: Smart Homes, Luxury Villas, Apartments, Hotels & Resorts, Airbnb Properties, Offices, Smart Buildings.
Product Information
- Brand: FTZHOME / SMATEK
- Model: S6E
- Country of Origin: China
- Net Weight: Approx. 250g
- HS Code: 85371000
- Warranty: 1 Year Limited Warranty
